Azure Active Directory (Azure AD) is a cloud-based identity and access management service provided by Microsoft, which allows users of an organization to sign in and access various resources such as Microsoft Office 365, the Azure portal, and many other SaaS applications.

Nowadays, Azure AD has been used as a standard approach for authenticating various office365 based applications, allowing it to work with a user's existing credentials. So, if you are developing applications that are deployed in the Azure environment, then the authentication mechanism is Azure AD instead of creating a custom authentication page and maintaining it

Recently we were working on a project where we needed access to a WCF service deployed on Azure in a .Net application. This worked fine when accessed anonymously, but we faced numerous challenges while making it work with Azure Active Directory Authentication

In this article, I will mention the steps one has to follow to carry out Azure Active Directory authentication on an application developed using .Net and consuming the WCF service or any app deployed on Azure.

I will also be sharing the steps on how to access a secure Azure App using JavaScript

For using Azure Authentication, your organization's Active Directory should be synced with Azure. Let's first see how to enable AD authentication on an Azure Web App

Enabling Azure AD Authentication on Azure App.
1. Login to your azure account using with your organization's Office365 account.
2. Click on All resources present in the left pane and select the Azure web App service from the list where we need to enable Azure AD Authentication.
3. Click on Authentication/Authorization option from the settings section under the left pane.

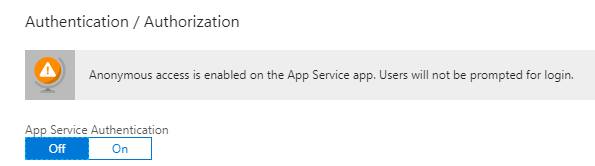

4. At present, the Azure App is anonymous. To enable app authentication, click On.

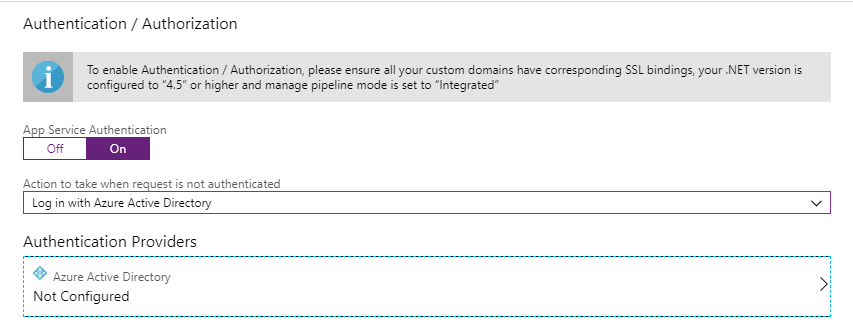

5. You will see a screen as shown in the below picture
6. Select Log in with Azure Active Directory option from the Action to take when request is not authenticated dropdown. To carry out the configuration, click on Authentication Providers option below.
7. You will see a screen like this:
8. Select Express mode, click Create New AD App, give a name to the App, and then click on OK.
9. Save these configurations, and you will see that the status has changed to "Configured" which is visible under Authentication Providers. Now click on Save.
10. After creating the Azure AD App, we need to add below redirect URLs of Azure App for which the authentication is applied under Advance Setting and then Save.


https:// WCFServiceName.svc

Here WebAppName is the name of your AzureApp created for service deployment.

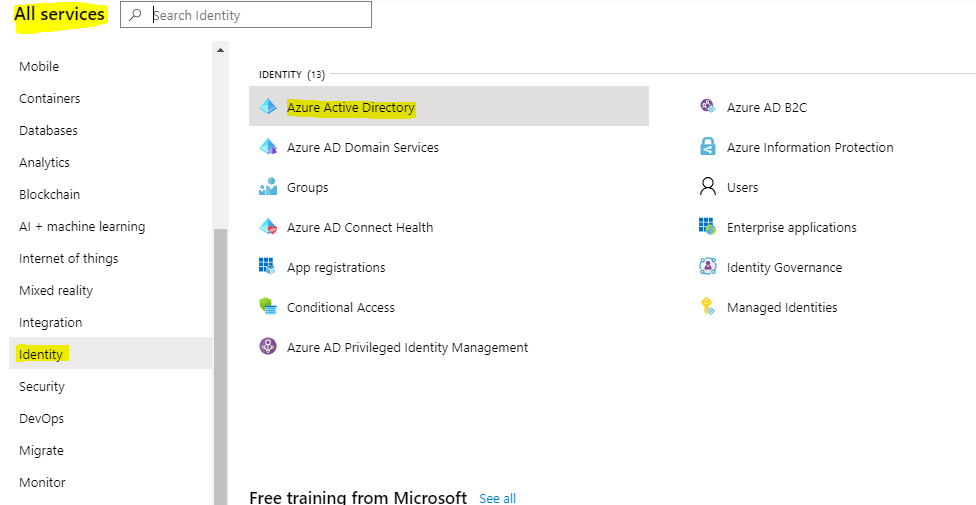

11. Now, the Azure AD App is created. For further configuration, navigate to the Azure AD App from the left panel, under All services à Select Identity à Azure Active Directory
a. Under App registrations, the AD App created will be visible
b. Click on All applications. It will list all the azure apps. Select the App you created
c. Copy the Application ID for the selected App that we will have to use later in the code
d. Now to generate a secret key, click on Certificates & secret.
e. Under Client Secrets, click on New Client secret and add a new one. Select Never Expires option and click on Add.
f. Copy the value generated for future use as you will not be able to get this value later when you visit the page, and you will have to generate a new one.

Note: If the key you generated contains any special characters (+, [], etc.) then generate a new key as it will not work.

Now Select the Authentication under AD App

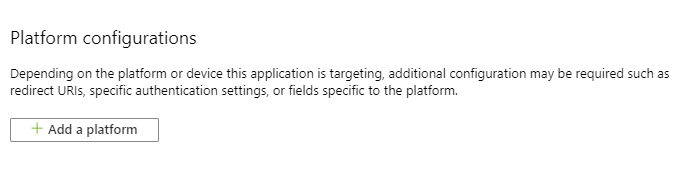

h. Below screen will get displayed:
i. Click on Add a platform and then select web applications.
j. Add below Redirect URL:

k. Under Implicit grant select ID tokens

Click on configure

Now using Add URI add

Here WebAppName is the name of your AzureApp created for service deployment.

l. In case you need to access the service in a JavaScript file, then you have to add the URL of the web page where you will be referring to your custom JavaScript file with Azure Authentication (like https://PWAUrl/Project%20Detail%20Pages/test.aspx). This will act as a redirect URL after authentication.
m. Thus, in all 3 URLs, two will be for web service, and one will be for JavaScript page redirection.
12. Get the TenantID and AzureAuthUrl. For this, click on Endpoints from App registration.

Copy the OAuth 2.0 Token Endpoint (V1) Url which is the AzureAuthUrl

Now, let's apply Azure authentication in the applications where the web service will be consumed
Azure AD authentication in .Net applications

For carrying out Azure AD authentication in .Net applications, we will need the below information which we had generated in the above steps:

Parameter Variable of code to assign to
OAuth2.0 Token Endpoint Url which is AzureAuthUrl (copied in step 12) authURL
Application ID (copied in step 11 above) clientID
Client Secret Key (generated and copied in step 11) clientCode
WCF service URL deployed on Azure App resourceURL

Copy these values in the code snippet, as described below. This code will carry out an HTTP web request using the auth URL with all parameters passed in POST and gives us access token, which will be added as Authorization header in the service call using .Net application.

//Here is the code that will give you the Access Token which will be passed to the service call.
string postParameters;
string authURL =;
string grant_type = "client_credentials";
string clientID = “ApplicationID”;
string clientCode = “client secret key”;
string resourceURL = “”;
postParameters = "grant_type=" + grant_type + "&client_id=" + clientID + "&client_secret=" + clientCode + "&resource=" + resourceURL + "";
var dataToSend = Encoding.UTF8.GetBytes(parameters);
var req = System.Net.HttpWebRequest.Create(authURL);
req.ContentType = "application/x-www-form-urlencoded";
req.Method = "POST";
req.ContentLength = dataToSend.Length;
req.GetRequestStream().Write(dataToSend, 0, dataToSend.Length);
var response = req.GetResponse();
var readStream = new StreamReader(response, Encoding.UTF8);
string data = readStream.ReadToEnd();
Newtonsoft.Json.Linq.JObject json = Newtonsoft.Json.Linq.JObject.Parse(result)
If json.Count > 0 Then
clienttoken = json["access_token"]
End If

//Sample Service Call to a method in which the token generated above is passed
var req = HttpWebRequest.Create(serviceUrl);
req.ContentType = "application/json";
req.Headers("Authorization") = "Bearer " + clienttoken;
req.Method = "GET"
var response = req.GetResponse();
var readStream = new StreamReader(response, Encoding.UTF8);
string data = readStream.ReadToEnd();

Now, you are ready to carry out a secure call to the WCF service or any Azure app using any .Net application.
Accessing Azure AD authenticated App in JavaScript embedded in office365 environment

This will be helpful in case you have developed any custom web service and deployed it in Azure and need to access the data in office 365 environment like Project Online; then, it can be assessed using JavaScript embedded on a page.

1. Reference adal.min.js for azure authentication in your JavaScript file. You can download the js from

2. Ensure you have added the web URL of your page where you will be adding your custom js for authentication under Add Redirect Url of configuration steps.

3. Get the authentication token

a. Set the attribute values under the config array variable:

i. Tenant: Use the tenantID from the Endpoint URL copied in step 6 above.

ii. clientId: Application ID of Azure App copied in step 4 above

iii. redirectUri : Reply URL added under Add Redirect Url step 5 above.

b. Call GetToken method to generate the authentication token.

c. Use the generated access token in the service call.

var config = {
instance: “”,
tenant: tenantId,
clientId: clientId,
redirectUri: ‘Reply url added’
cacheLocation: 'localStorage'

Function GetToken{
var authContext = new AuthenticationContext(config);

// save tokens if this is a return from AAD
//Get user
var user = authContext.getCachedUser();
// attempt callback
if (user) {
// acquire user token
authContext.acquireToken(authContext.config.clientId, function (error, token) {
if (error || !token) {
accessToken = token;

else if (authContext.getLoginError()) {
// error logging in
console.log("Error logging in", authContext.getLoginError());
else {
// not logged in
console.log("Logging in");

function servicecall(url, data, successCallback, errorCallback)
url: url,
type: "POST",
data: JSON.stringify(data),
success: successCallback,
contentType: "application/json",
headers: {
'Authorization': 'Bearer ' + accessToken,
error: errorCallback,
dataType: "json"

Here url is the Url to the method call of the webservice/app deployed under Azure.

Now, you are ready to carry out Azure Active Directory authentication for an Azure service app called in any JavaScript-enabled Office 365 application.

Happy Coding!!
